Yamaha Marine

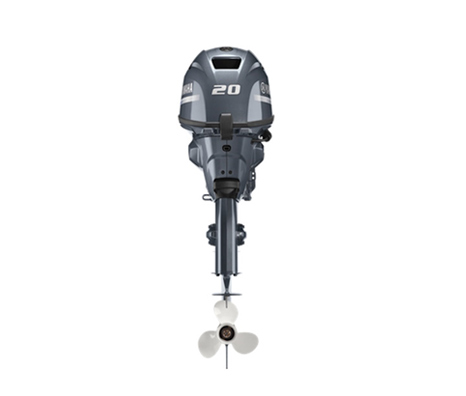

Yamaha Marine Outboard – F20
Specification Detail
- Engine type 4-stroke, SOHC, inline 2-cylinder
- Displacement 432 cc (26.4 cu in)
- Full throttle RPM range 5,500–6,300 RPM
- Rated power 20 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 16 amps (gross), 12 amps (net charging)
- Gear ratio 2.15:1
- Transom height options S: 15 in; L: 20 in
- Dry weight Approx. 126 lb (L shaft)

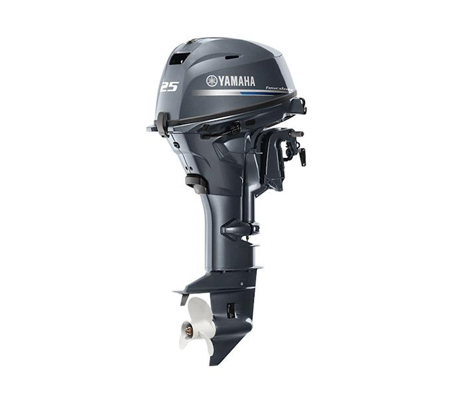

Yamaha Marine Outboard – F25
Specification Detail
- Engine type 4-stroke, SOHC, inline 2-cylinder
- Displacement 432 cc (26.4 cu in)
- Full throttle RPM range 5,500–6,300 RPM
- Rated power 25 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 16 amps (gross), 12 amps (net charging)
- Gear ratio 2.08:1
- Transom height options S: 15 in; L: 20 in
- Dry weight Approx. 132 lb (L shaft)

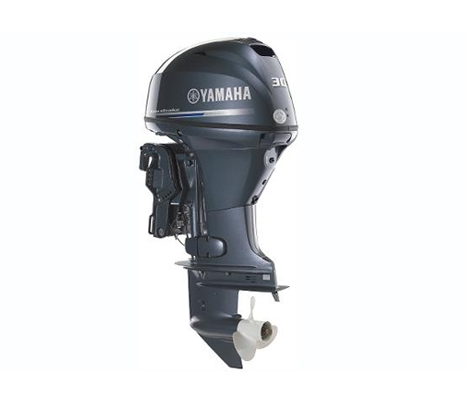

Yamaha Marine Outboard – F30
Specification Detail
- Engine type 4-stroke, SOHC, inline 3-cylinder
- Displacement 747 cc (45.6 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 30 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 17 amps (gross), 13 amps (net charging)
- Gear ratio 2.08:1
- Transom height options S: 15 in; L: 20 in
- Dry weight Approx. 214 lb (L shaft)

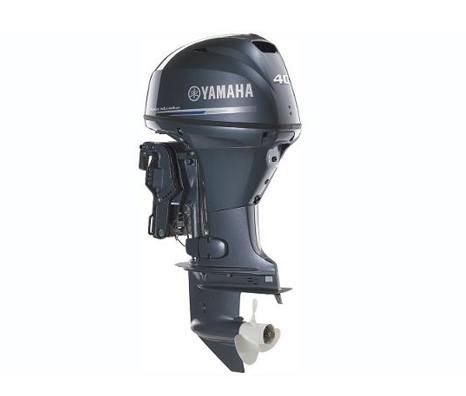

Yamaha Marine Outboard – F40
Specification Detail
- Engine type 4-stroke, SOHC, inline 3-cylinder
- Displacement 747 cc (45.6 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 40 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 17 amps (gross), 13 amps (net charging)
- Gear ratio 2.00:1
- Transom height options S: 15 in; L: 20 in
- Dry weight Approx. 216 lb (L shaft)

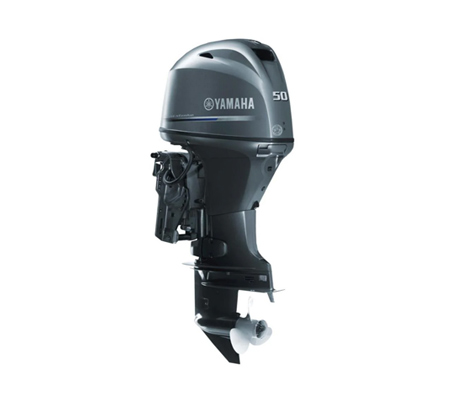

Yamaha Marine Outboard – F50
Specification Detail
- Engine type 4-stroke, SOHC, inline 4-cylinder
- Displacement 996 cc (60.8 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 50 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 16 amps (gross), 11 amps (net charging)
- Gear ratio 2.27:1
- Transom height options L: 20 in
- Dry weight Approx. 253 lb

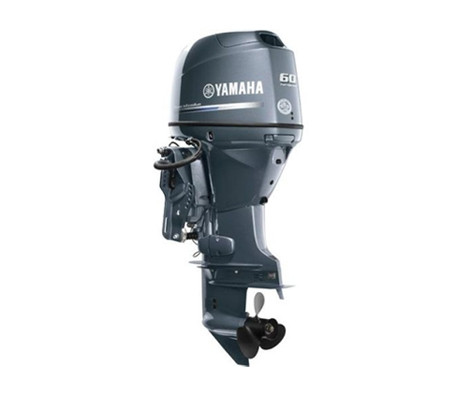

Yamaha Marine Outboard – F60
Specification Detail
- Engine type 4-stroke, SOHC, inline 4-cylinder
- Displacement 996 cc (60.8 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 60 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 16 amps (gross), 11 amps (net charging)
- Gear ratio 2.27:1
- Transom height options L: 20 in
- Dry weight Approx. 253 lb

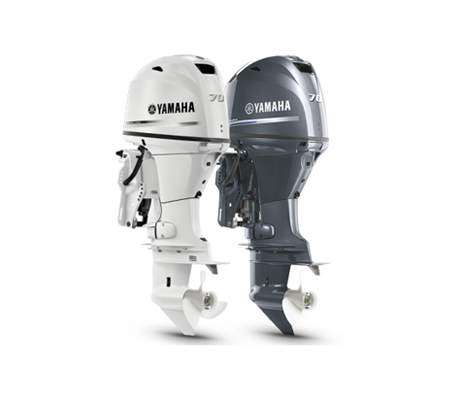

Yamaha Marine Outboard – F70
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 996 cc (60.8 cu in)
- Full throttle RPM range 5,300–6,300 RPM
- Rated power 70 HP @ 5,800 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 35 amps (gross), 17 amps (net charging)
- Gear ratio 2.33:1
- Transom height options L: 20 in
- Dry weight Approx. 257 lb

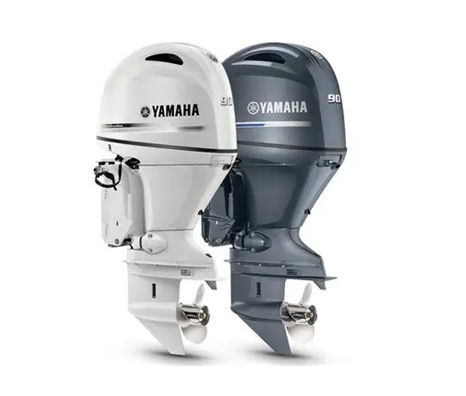

Yamaha Marine Outboard – F90
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 1,832 cc (111.8 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 90 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 35 amps (gross), 17 amps (net charging)
- Gear ratio 2.15:1
- Transom height options L: 20 in
- Dry weight Approx. 353 lb

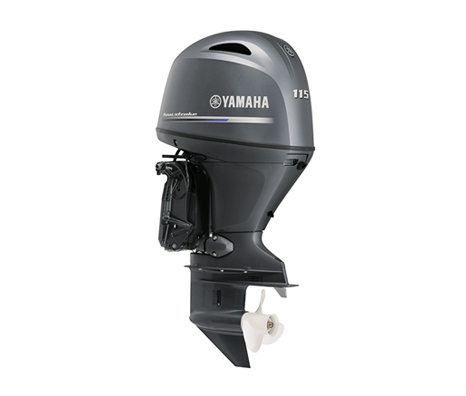

Yamaha Marine Outboard – F115
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 1,832 cc (111.8 cu in)
- Full throttle RPM range 5,300–6,300 RPM
- Rated power 115 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 35 amps (gross), 17 amps (net charging)
- Gear ratio 2.15:1
- Transom height options L: 20 in
- Dry weight Approx. 377 lb

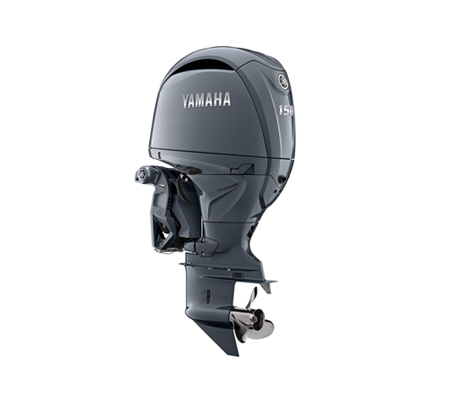

Yamaha Marine Outboard – F150
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 2,670 cc (163 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 150 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 2.00:1
- Transom height options L: 20 in; XL: 25 in
- Dry weight Approx. 478 lb (25 in)

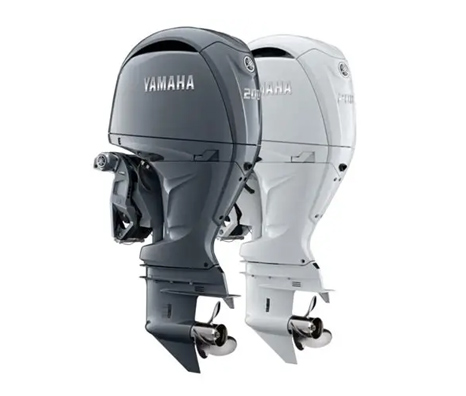

Yamaha Marine Outboard – F200
Specification Detail
- Engine type 4-stroke, DOHC, V6
- Displacement 3,352 cc (204.5 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 200 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 1.75:1
- Transom height options L: 20 in; XL: 25 in
- Dry weight Approx. 608 lb (25 in)

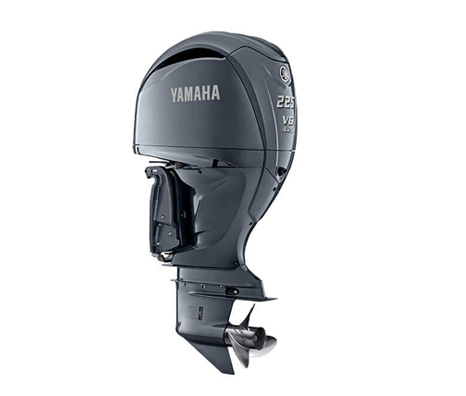

Yamaha Marine Outboard – F225
Specification Detail
- Engine type 4-stroke, DOHC, V6
- Displacement 3,352 cc (204.5 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 225 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 1.75:1
- Transom height options L: 20 in; XL: 25 in
- Dry weight Approx. 622 lb (25 in)

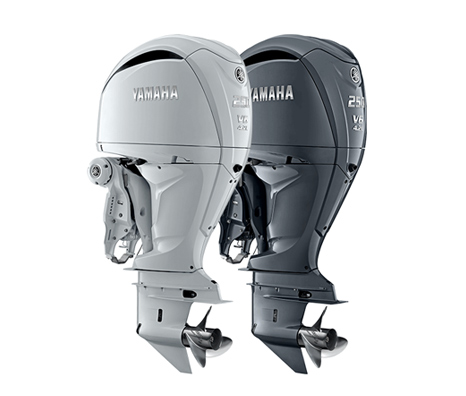

Yamaha Marine Outboard – F250
Specification Detail
- Engine type 4-stroke, DOHC, V6
- Displacement 4,169 cc (254.4 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 250 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 1.75:1
- Transom height options XL: 25 in; X: 30 in
- Dry weight Approx. 608 lb (25 in)

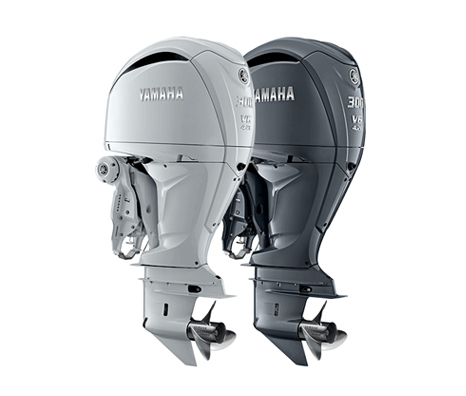

Yamaha Marine Outboard – F300
Specification Detail
- Engine type 4-stroke, DOHC, V6
- Displacement 4,169 cc (254.4 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 300 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 1.75:1
- Transom height options XL: 25 in; X: 30 in
- Dry weight Approx. 562 lb (25 in)

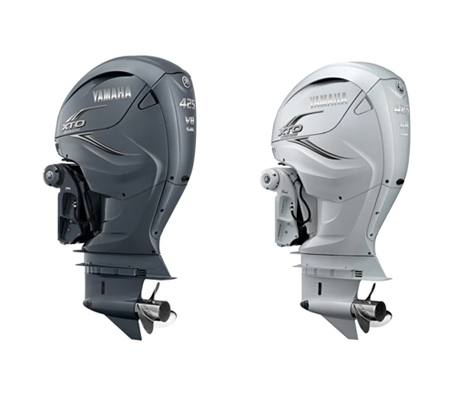

Yamaha Marine Outboard – XTO 425
Specification Detail
- Engine type 4-stroke, DOHC, V8
- Displacement 5,559 cc (339.2 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 425 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 90 amps (gross), 70 amps (net charging)
- Gear ratio 1.65:1
- Transom height options XL: 25 in; X: 30 in
- Dry weight Approx. 952 lb (25 in)
- Steering Integrated electric steering

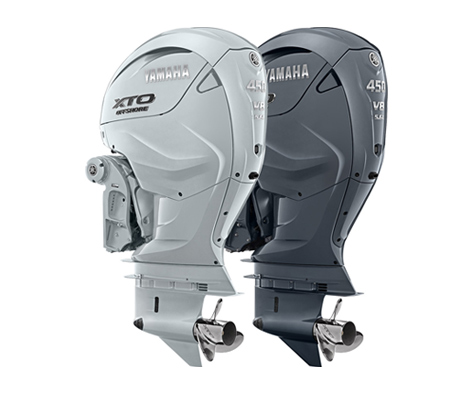

Yamaha Marine Outboard – XTO 450
Specification Detail
- Engine type 4-stroke, DOHC, V8
- Displacement 5,559 cc (339.2 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 450 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 90 amps (gross), 70 amps (net charging)
- Gear ratio 1.65:1
- Transom height options XL: 25 in; X: 30 in
- Dry weight Approx. 952 lb (25 in)
- Steering Integrated electric steering

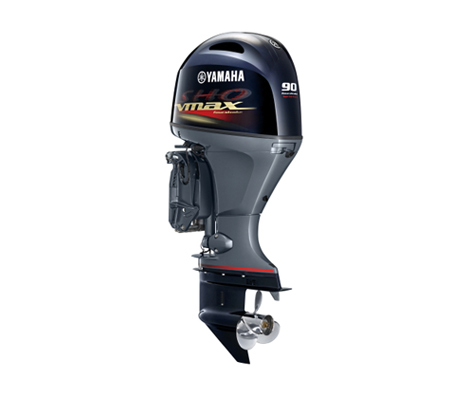

Yamaha Marine Outboard – VMAX SHO 90
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 1,832 cc (111.8 cu in)
- Full throttle RPM range 5,300–6,300 RPM
- Rated power 90 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 35 amps (gross), 17 amps (net charging)
- Gear ratio 2.15:1
- Transom height options L: 20 in
- Dry weight Approx. 353 lb

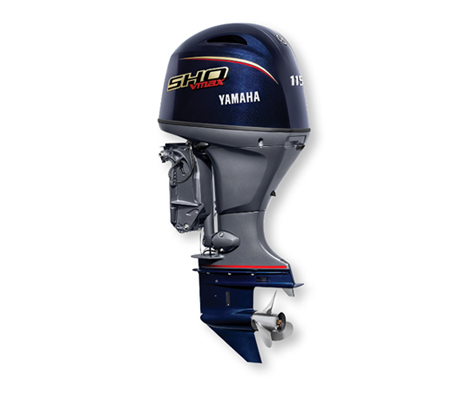

Yamaha Marine Outboard – VMAX SHO 115
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 1,832 cc (111.8 cu in)
- Full throttle RPM range 5,300–6,300 RPM
- Rated power 115 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 35 amps (gross), 17 amps (net charging)
- Gear ratio 2.15:1
- Transom height options L: 20 in
- Dry weight Approx. 377 lb

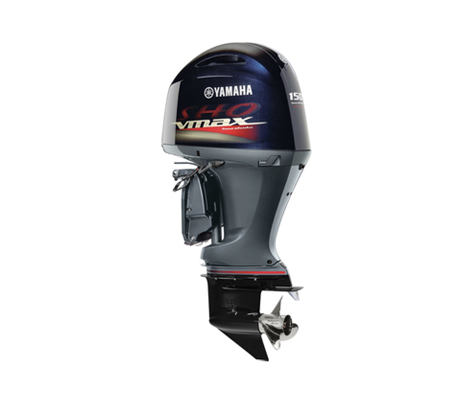

Yamaha Marine Outboard – VMAX SHO 150
Specification Detail
- Engine type 4-stroke, DOHC, inline 4-cylinder
- Displacement 2,670 cc (163 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 150 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 2.00:1
- Transom height options L: 20 in; XL: 25 in
- Dry weight Approx. 480 lb

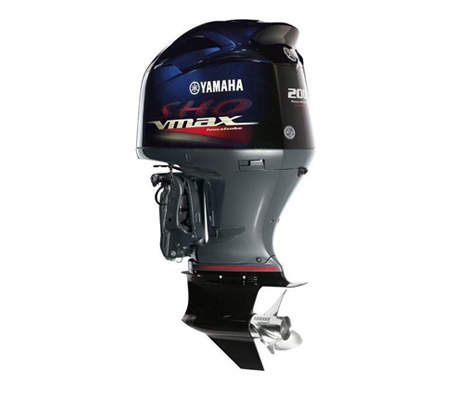

Yamaha Marine Outboard – VMAX SHO 200
Specification Detail
- Engine type 4-stroke, DOHC, V6
- Displacement 3,352 cc (204.5 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 200 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 1.75:1
- Transom height options L: 20 in; XL: 25 in
- Dry weight Approx. 608 lb
Yamaha Marine Outboard – VMAX SHO 250
Specification Detail
- Engine type 4-stroke, DOHC, V6
- Displacement 4,169 cc (254.4 cu in)
- Full throttle RPM range 5,000–6,000 RPM
- Rated power 250 HP @ 5,500 RPM
- Fuel delivery Electronic Fuel Injection (EFI)
- Alternator output 50 amps (gross), 30 amps (net charging)
- Gear ratio 1.75:1
- Transom height options XL: 25 in; X: 30 in
- Dry weight Approx. 608 lb
